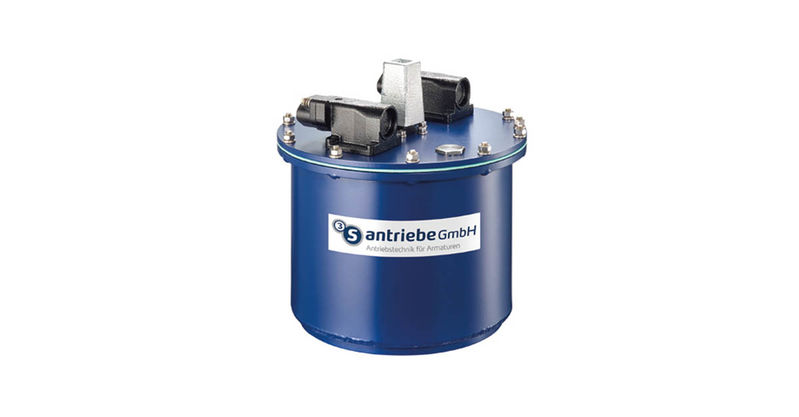

Small and powerful: The new 3S 300 D rotary drive
The 3S 300D is an actuators for smaller diameters valves. Due to the compact packing size, low installation depths are sufficient to automate valves, valves and ball valves inexpensively and even retroactively. The 3S 300 D series offers actuators for smaller diameters of buried valves. Maximum torque limit is 125 Nm.

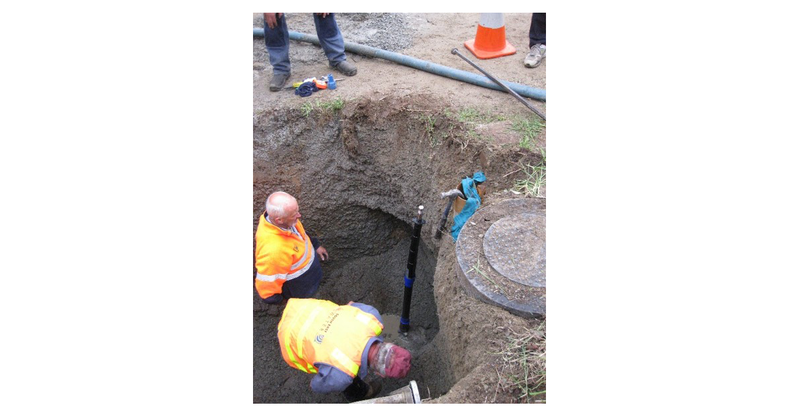

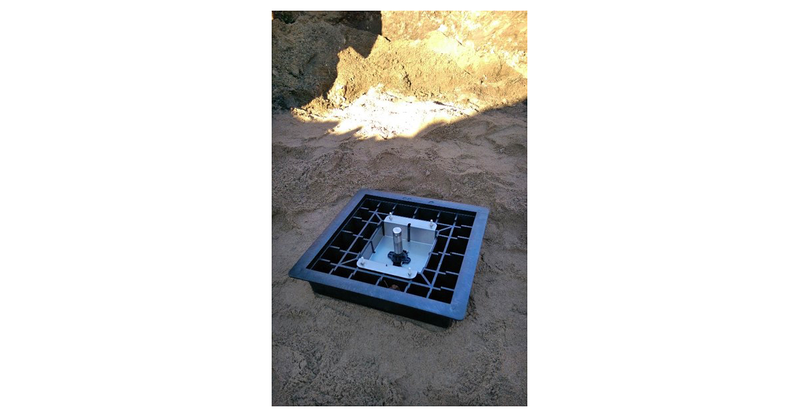

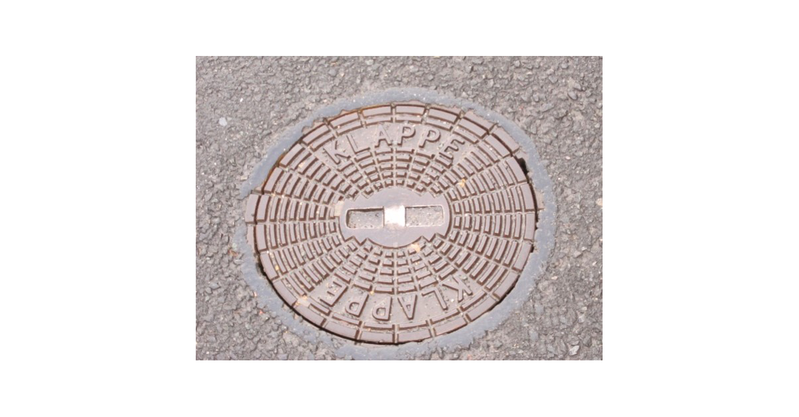

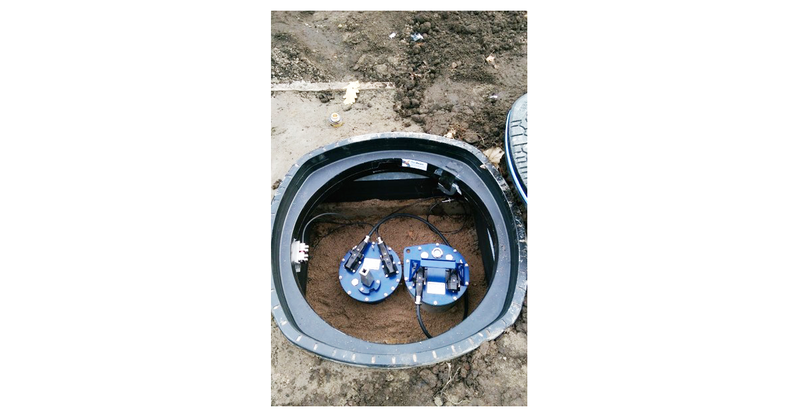

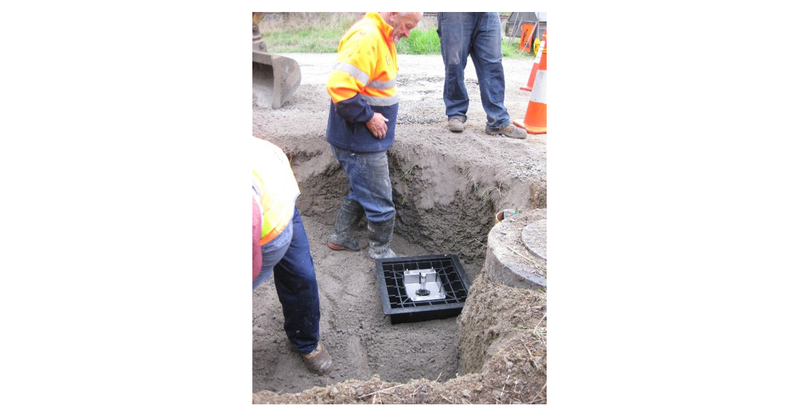

The 3S 300 D is also watertight and suitable for installation via the Berliner Kappe system directly into compacted soil and without expensive manhole structures. Thanks to the x-active M2M Communication, it is bidirectionally connected directly to the control room and can be reached at any time. Completely decentralized automation of the network is ensured by battery operation with 3S Energy Save Technology.
- No manhole: little costs for civil and underground engineering even with retrofitting valves thanks to the installation System Berliner Kappe
- No data cabling, PLC or switching cabinet: bidirectional SCADA integration and accessibility at all times thanks to x-active M2M communication technology
- No grid connection: one year battery lifetime without recharging thanks to 3S Energy Save Technology
The maximum rotation speed is available up to approx. 50% of the maximum torque 2 The maximum torque is available up to approx. 30 % of
The maximum rotation speed 3 Installation according to the System Berliner Kappe; depth of installation valve square-end
|
Actuator |
Power W
|
Max. Rotation speed1?[1/min]
|
Adjustment range of torque limitation2[Nm]
|
Valve connection
|
|
|
[1/min]
|
[Nm]
|
Flange EN
ISO 5210 / 5211
|
System Berliner Kappe?
installation depth [m]3
|
||
|
3S 300 D-125 |
300 |
30 |
up to 125 |
F 10 |
0.5-3.5 |
|
3S 300 D-60 |
300 |
60 |
up to 60 |
F 10 |
0.5-3.5 |
