Mobile Valve Exercising systems are a valuable investment for local councils to help maintain water network valves safely and efficiently, reducing the need for costly repairs and replacements.
Communities rely on water utilities to ensure a safe and consistent water supply. In order to maintain the supply, the infrastructure requires maintenance to keep valves in good condition allowing water utilities to shut down areas of the distribution system safely and swiftly when needed. If the valves remain unused for long periods of time, they are subject to corrosion affecting their functionality and rendering them inoperable.
Mobile Valve Exercising systems offer an attractive economic, safe, and mobile solution to this challenge. Designed to help mitigate the risks associated with valve corrosion and provide a swift and safe response to emergencies.
The Compact
The Compact Mobile Valve Exerciser is an ideal solution for small councils and water boards who understand the importance of valve exercising and are looking to streamline their maintenance program. With a safe, efficient, and smart system, the Compact unit is simple to run with a manual start and an easy-to-operate hydraulic arm.
The Compact LX
Ensure reliable controlled water by stepping up to the Compact LX Mobile Valve Exerciser, designed with increased power, a hydraulic arm, and smart digital controls for safe operation ensuring reliable controlled water for councils and water boards looking to invest in the future of their water network. The machine can be mounted on a trailer, skid or flatbed trailer for quick and easy access and transport. It is equipped with a Valve Information Tracking And Logging System (VITALS software) equips an operator to record live critical valve information.
The Standard LX

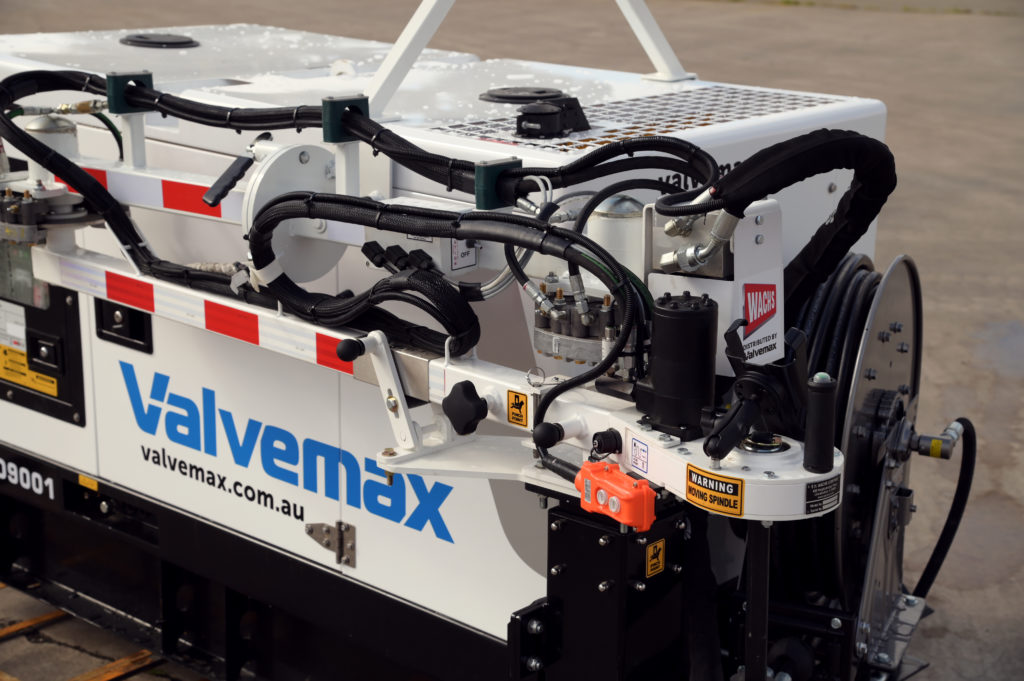

The Standard LX is a heavy-duty Mobile Valve Exerciser, used mainly in medium to large city councils or remote locations. It is the top-of-the-range valve maintenance system available. It has heavy-duty strength and power and combines all the necessary features required for hydro-excavation & valve turning. From control & data management to the VITALS software, you have access to read and record critical valve information live.
 |
 |
 |
| 7×4 single axle | 9×5 tandem axle | 10×6 tandem axle |
| 50mm ball hitch | 50mm ball hitch | 50mm ball hitch |
| Cable override brakes with park and electrical brakes | Cable override brakes with park and electrical brakes | Electric brakes with brake away, and cable park brake |
| 1800mm drawbar | 1800mm drawbar | |
| 15-inch wheel with AT tyres and spare | 15-inch wheel with AT tyres and spare | 15-inch wheel with AT tyres and spare |
| Painted finish | Painted finish | Painted finish |
| All LED lighting | All LED lighting | All LED lighting |
| 1400KG ATM | 2000KG ATM | 3500KG ATM |
| – | – | Pintle Hitch (Optional) |
|
|
|
| 22 HP Kubota Diesel 3 cylinder liquid cooled | 27.6HP Perkins 20.6 KW 2.2L Diesel, 404A-22G1, 4 cylinder, 4 stroke, liquid cooled | 29HP Kubota Diesel 1.1L, I-3 4-stroke, liquid cooled, IDI diesel engine EPA Tier 4F & EU Stage IIIA emission compliant |
|
|
|
| Auxiliary hydraulic outlet with quick disconnects | 15m spring rewind hose reel for auxiliary hydraulic power with quick disconnects | 15m spring rewind hose reel for auxiliary hydraulic power with quick disconnects |
| – | Second auxiliary hydraulic outlet with quick disconnects | – |
| 30LPM @2000PSI | 30LPM @2000PSI | 30LPM @ 1800 PSI |
|
|
|
| Key start with Emergency stop | – | – |
| – | Digital tachometer | Digital tachometer |
| Engine hour meter | Engine hour meter | Engine hour meter |
| – | – | Volt meter |
| – | – | Vacuum gauge |
| – | – | Spoils dump switch |
| – | – | Spoils door switch |
| – | – | Water/vacuum selector switch |
|
|
|
| – | LED strobe light with two LED swivelling work lights. | Programmable arrow bar includes eight function control box with eight individual segments and two mounted LED swivelling work lights |
|
|
|
| Direct coupled fixed displacement gear pump rated at 30 LPM @ 2000 PSI continuous duty | Direct coupled fixed displacement gear pump rated at 30 LPM @ 2000 PSI continuous duty | Direct coupled pump rated at 30 LPM @ 1,800 PSI continuous duty. |
| 45 litre reservoir, controlled fan cooled heat exchanger, with oil level sight glass | 45 litre reservoir, controlled fan cooled heat exchanger, with oil level sight glass | 45 litre hydraulic reservoir with thermostatic controlled fan cooled heat exchanger. |
| – | – | Instrumentation includes an oil level gauge, temperature gauge, pressure gauge and selector valve switching to a HTMA class II auxiliary hydraulic circuit. |
|
|
|
| 40L with sight glass | 100L Digital gage on control panel | 45L Digital gage on control panel |
