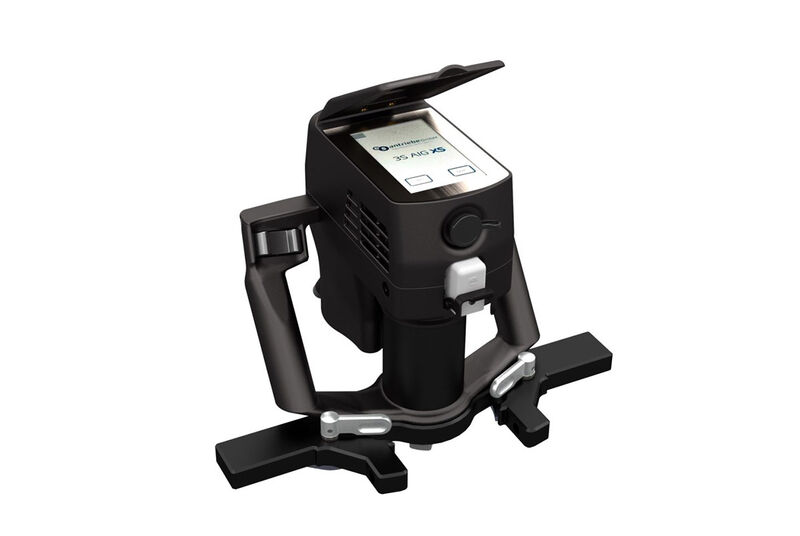

Redesigned with all the smart technology required for the Australian water industry, the 3S AIG Handheld Valve Actuator is here to ensure safe, efficient and portable valve exercising. Save costs, ensure staff safety all while being easy to handle.
SAVE COSTS
Save costs through the rehabilitation of valves instead of costly replacements.
The 3S AIG Handheld Valve Actuator is designed to exercise valves safely using variable torque settings, ensuring smooth operation of existing valves.
ENSURE STAFF SAFETY
Optimised for the safety of personnel and infrastructure, the 3S AIG can be operated with ease by an individual or team of two.
It constantly monitors torque curve and the number of turns for safe and easy operation.
EASY TO HANDLE
Portable, light weight and battery powered. The 3S AIG is the perfect tool for identifying the condition of your valves.
Easy to handle and smart, with reporting of valve conditions made easy with the digital interface.
| Touch-Screen User Interface | 5 inch, 480x800RGB |
| Torque / Speed Control | Via touch-screen user interface and two-way eletronic switch |
| Feed-back valve status data | Current torque and position, valve turns, maximum torque |
| Valve selection | Via touch-screen user interface |
| Data interface valve master/measurement data | USB, bluetooth, mobile radio (optional) |
