The P2 offers increased productivity, operator safety and valve protection. Perfect for hard to reach valves, valve exercising and fast shut down. Delivers controlled power to operated valves from 6” to 60”.
• Lightweight, yet designed for heavy day to day use.
• Maximum valve protection with adjustable torque control up to 800 ft./lbs.
• Safety features include GFI* (ground fault interrupter) speed control, torque control and automatic shut-off.
|Machine Capacity||Operates all gate valves 6” to 60” (15.3 to 152.4 cm) and other equipment requiring mechanized turning|

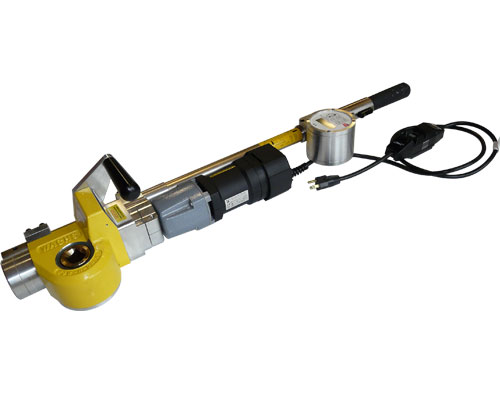

|Electric Motor Control||2 speed gear box: (Low RPM/High Torque) (High RPM/Low Torque); Overload reset button; On/off, forward/reverse and neutral; GFI ground fault interrupter) with test and reset|

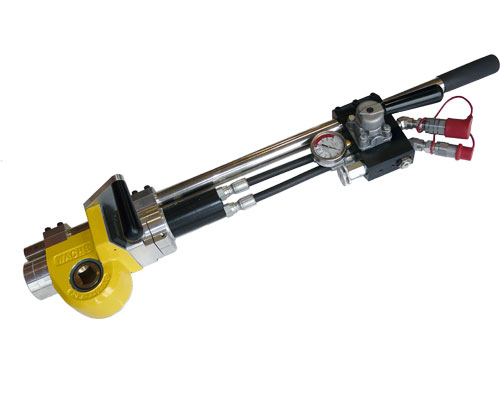

|Hydraulic Motor Control||Adjustable torque setting valve from 0 to 800 ft./lbs. with torque indicator gauge; Reversing valve, spring loaded self centering automatic stop after release|

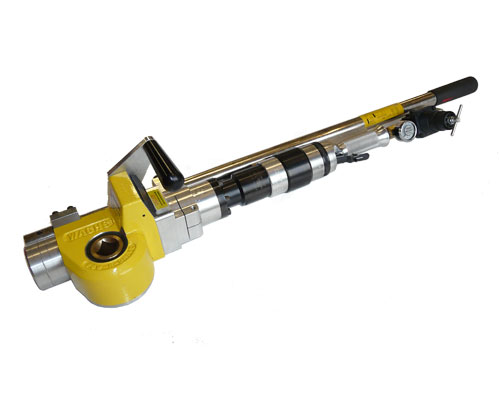

|Pnematic Motor Control||Reversible pneumatic motor with spring loaded on/off lever.
Automatic stop after release

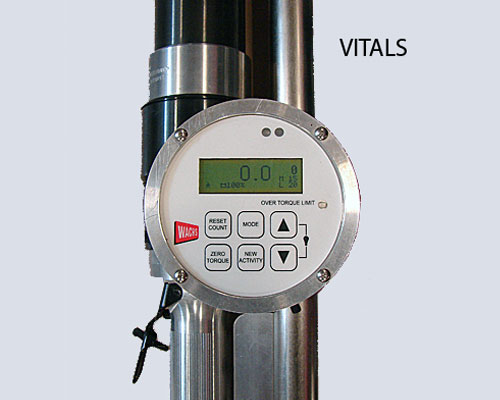

|Revolution Counter||Built in digital counter display. Push button reset counts in 1/10 revolution increments, forward and reverse automatically|
