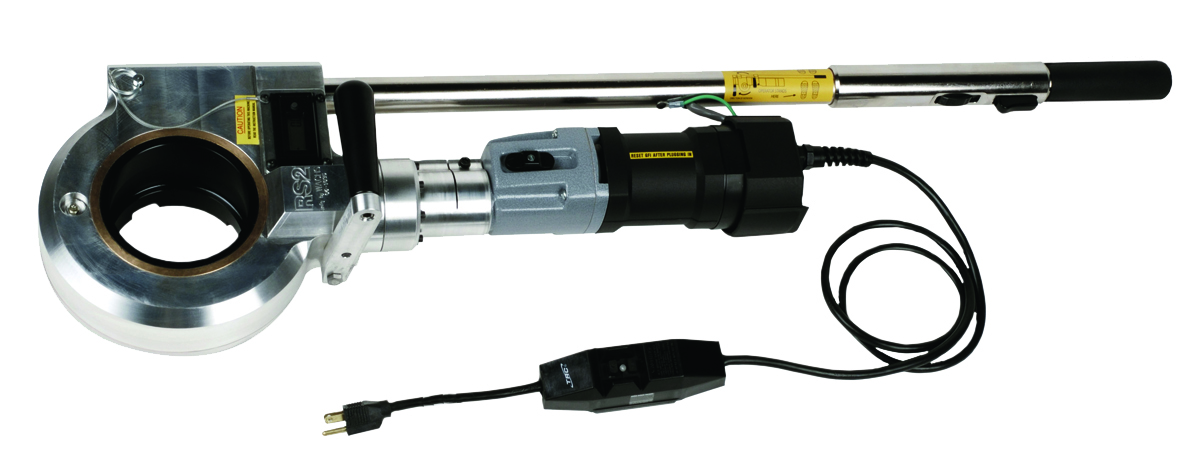

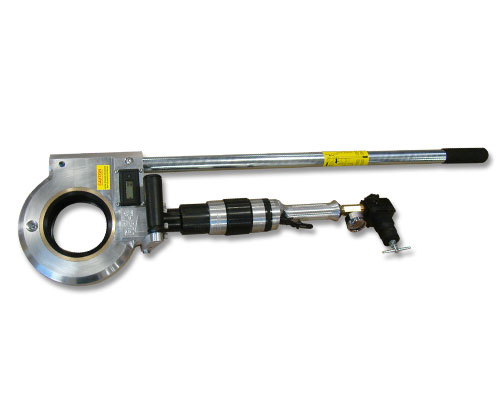

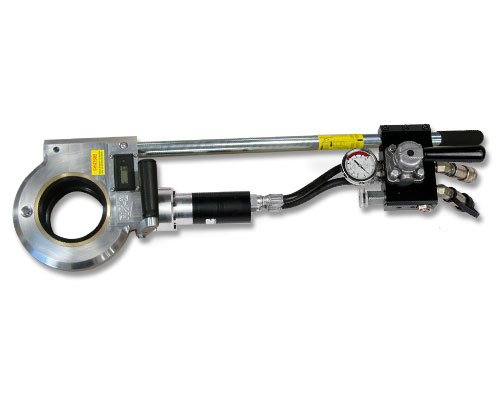

The RS-2 Portable Valve Operator for rising and non-rising stem valves delivers up to 800 lb-ft torque and a maximum of 55 rpm for fast, reliable opening and closing of water, wastewater, pipeline and petrochemical valves.
• Mount to any handwheel with “Universal Handwheel Adapter”.
• Forward and reverse operation.
• Variable speed control.
• Built in easy view LCD counter.
| Machine Capacity | Operates all rising and non risingstem valves from 6” to 60”, which require mechanized turning. |
| Drive | • Lightweight aluminium gear box • Two stage reduction • Planetary motor drive • Steel ring and pinion secondary drive |
| Revolution Counter | Built in “easy view” LCD counter. Push button reset counts 1/10 revolution increments, forward and reverse, automatically |
| Drive Hub | 4” opening for rising stem valve |
