| Valve Machine Intelligent Automation |
- VMT valve exercisers utilise patented ‘no assumption’ automation technology to safetly and effectively turn valves using AWA recommended procedures
- Protects the valve by not assuming size, direction or current position
- Allows the machine to follow the path of least resistance
- Programming and sensors automatically stop the rotation and reverse in half turn increments to flush calcification from the valve gate
- Patented automation always exercises valve an the minimum torque required tor turn
- Automation lowers pre-set threshold once the rotation begins so the impact at the end of valve travel is soft as possible
|
| TM-7 Exercising System |
- Standard duty, slide sytle, truck mount valve exerciser utilizing patented intelligent automation to control torque, direction and turns
- Centre turntable bearing mount combined with stainless steel roller/clamp ring provides 100° of freedom and 685mm head extension
- An 2.4m long valve key with 50mm universal socket is also provided
|

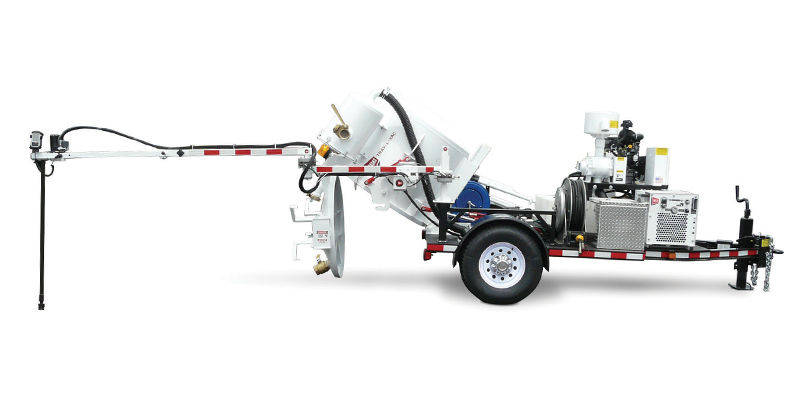

| ERV-750 Exercising System |
- Articulating arm
- Automated valve operator utilising patented intelligent automation to control torque, direction and turns
- Twin arms (one telescoping) provides 13” reach over 270° of freedom
- Hydraulic disk brakes safely secure exerciser capable of 750 lbs of torque
- Constructed of 3” square steel tube and powder coated for long life
- A light weight, telescoping key is also provided
|
| Engine |
- Caterpillar/Perkins 29 HP (21.6 KW), liquid cooled, DFI, diesel engine
- EPA Tier 4i & EU Stage IIIA emission compliant (trailer #77-000-28)
- Kholer 27 HP (20.1 KW) gasoline, model CH7405 Command Pro27 (trailer #77-000-26)
|
| VITALS Software |
VITALS Software 3.3.1 (Valve Information Tracking and Logging System) equips an operator to record critical valve information and GPS position valve location while exercising valves. This information can them be synchronized between the HC-100 handheld controller and desktop GIS.
Custom valve ID information recorded includes:
- the number of turns
- maximum torque
- valve location
To eliminate valuable downtime, VITALS diagnostics quickly identifies issues relating to:
- settings
- brakes
- counter
- GPS
- hydraulics
Additional features include:
- Turns Bar Indicator
- Auto-Detect Controller Port
- Auto-Detect GPS
- Auto-Connect to Exerciser
- Bluetooth Indicator
- No Activity Valves
- Error Indicator
- Customer GPS Naming
- Power Save
- Language Selection
|
