Wachs Diamond Wire Guillotine Saw 208

The Wachs Diamond Wire (DW) Guillotine 208 is a faster and safer method of cutting 2″ to 8″ pipe including steel, ductile, cast iron, concrete (CA), poly, PVC and mixed media. Secured to the pipe, the DWG 208 utilises a fully enclosed, high speed diamond infused cutting wire that cuts quickly and precisely. Its compact design features stainless steel construction, with a collapsible folding arm design that allows it to be easily stored and transported.

Fast becoming the preferred cutting device for the Australian water industry due to the the devices unique, safety orientated design. Every DWG 208 saw comes complete with a custom carrier for protection, plus a carrier mounted water tank and spray lubricant. These saws do not bind like traditional saws, eliminating the kickback dangers associated with gasoline powered handheld chain saws or abrasive wheel devices that can occur from pipe compression or shifting. The DWG 208 is hydraulically powered using a sealed loop that can run in water, eliminating the danger of gas fumes collecting when working down in the ground. Apart from the cutting area, the diamond wire is fully enclosed within the saw for safety. The diamond wire is designed to slightly rotate radially while cutting, allowing all the diamond elements to come into contact with the workpiece. Due to the longevity of the diamond cutting wire, Wachs DW series saws feature one of the lowest costs per cut in the industry, and a much lower cost of consumables over the life of the machine than other cutting devices.

Details

Wachs Diamond Wire Guillotine Saw 208 for 2″-8″ pipe (9.6″ maximum outside diameter).

A new rigid collapsible design allows for quick, safe, dependable operation, even in the harshest of environments. The Wachs DWG-208 Diamond Wire Guillotine Saw merges the ease of operation of a traditional Guillotine Saw with the cutting power of a diamond wire.

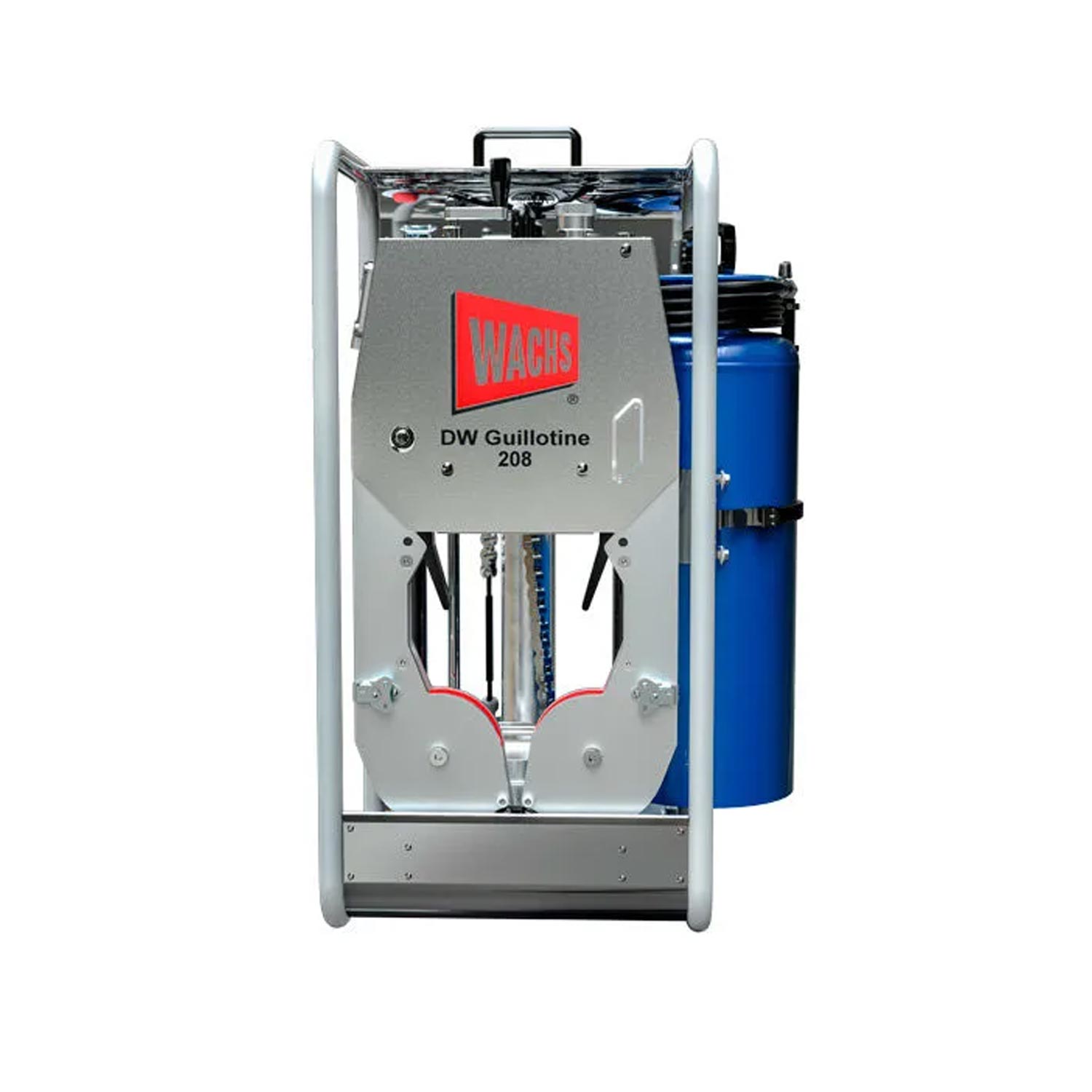

The unit includes Hydraulic Powered Diamond Wire Guillotine, high density diamond wire loop assembly, shipping and storage carrier, operations manual, spray coolant and washdown system.

DWG 208 FEATURES

Pivoting safety shield for ease of cleaning and serviceability
Lightweight, durable construction
Chain mount system for secure pipe mounting

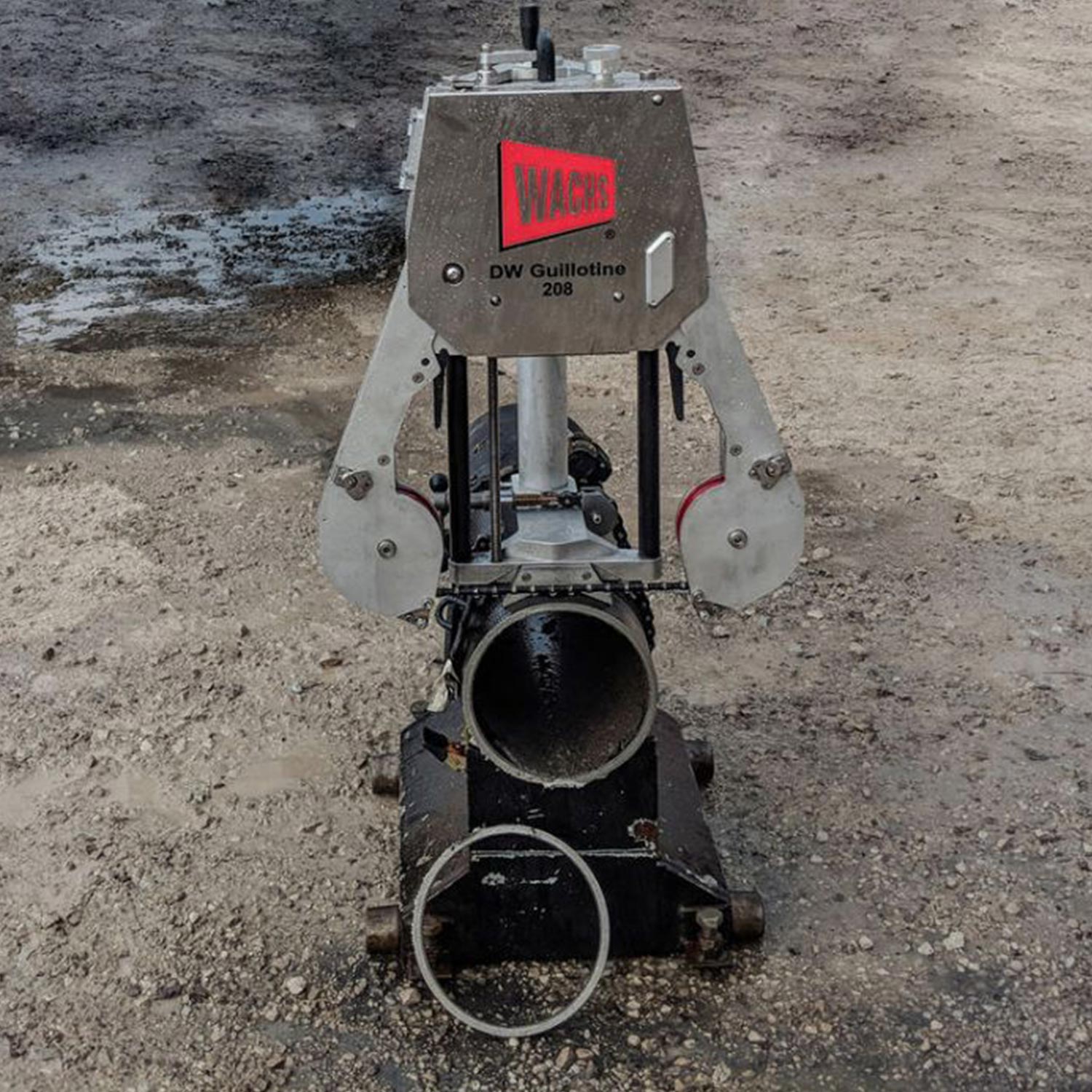

Mounts directly to pipe or beam for clean cuts
Cuts 2in-8in (DN50-200) pipe and bar (up to 9.6in diameter)
Feed gauge shows wire pressure and cut angle
Tool-free operation and maintenance
No internal cut support mechanisms to pinch in the cut (chain support, blade tooth support, etc).
Detachable, swing-away front cover

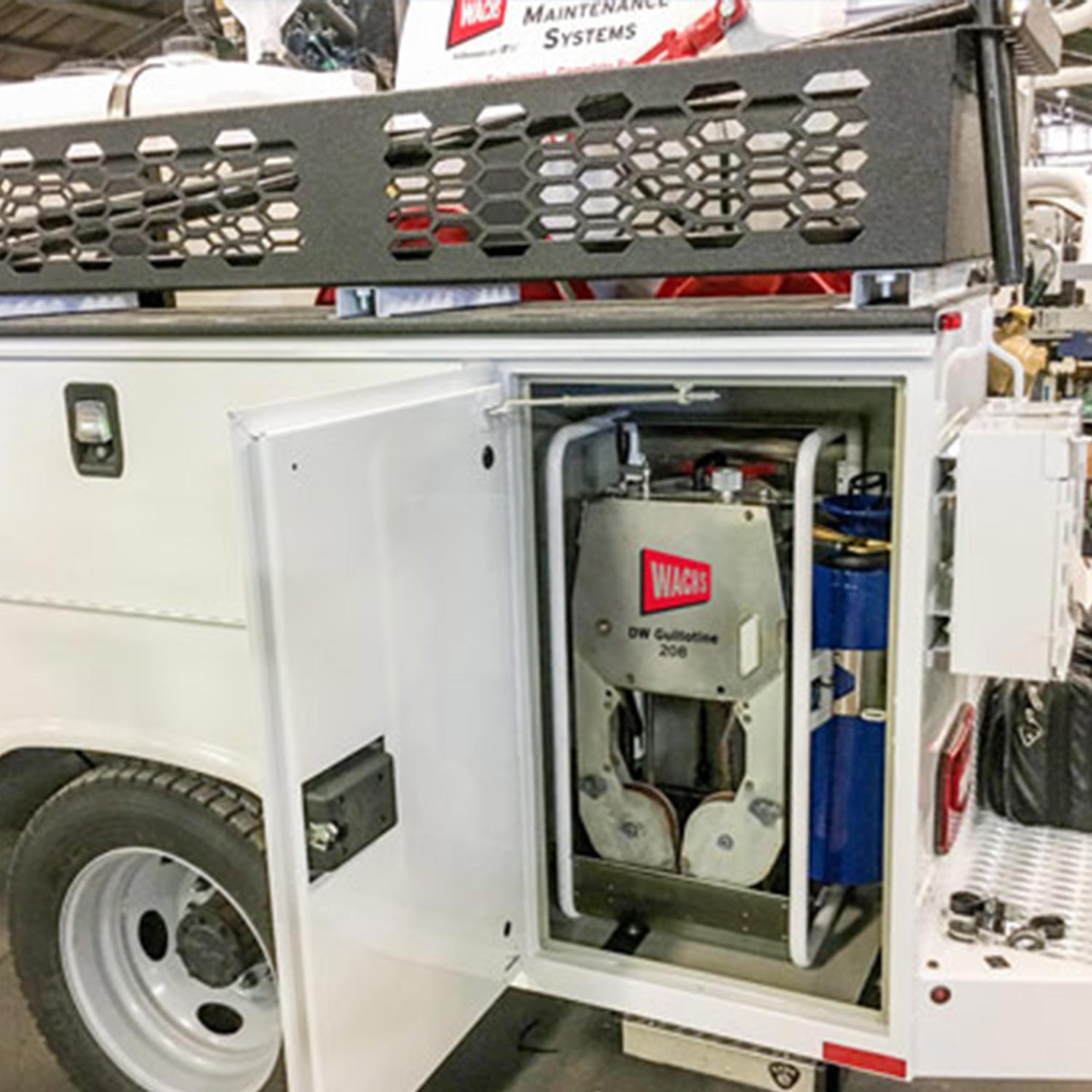

Connects directly to all Wachs Utility Power units, standard Class II HPU, or tool circuit of truck/tractor
User servicable maintenance parts (drive and guide wheel assemblies)
Designed with safety in mind, everything about this machine is geared toward operator safety, simplicity, reliability and performance

EASE OF USE

Single person operation
Operator controls and feedback gauge are top mounted away from cutting action
Feed screw controls cutting motion; the saw does all the work reducing operator fatigue
Wire travels in housing to protect the operator
Does not bind like traditional saws
Quick release levers and latches for fast setup and maintenance (no tools required)

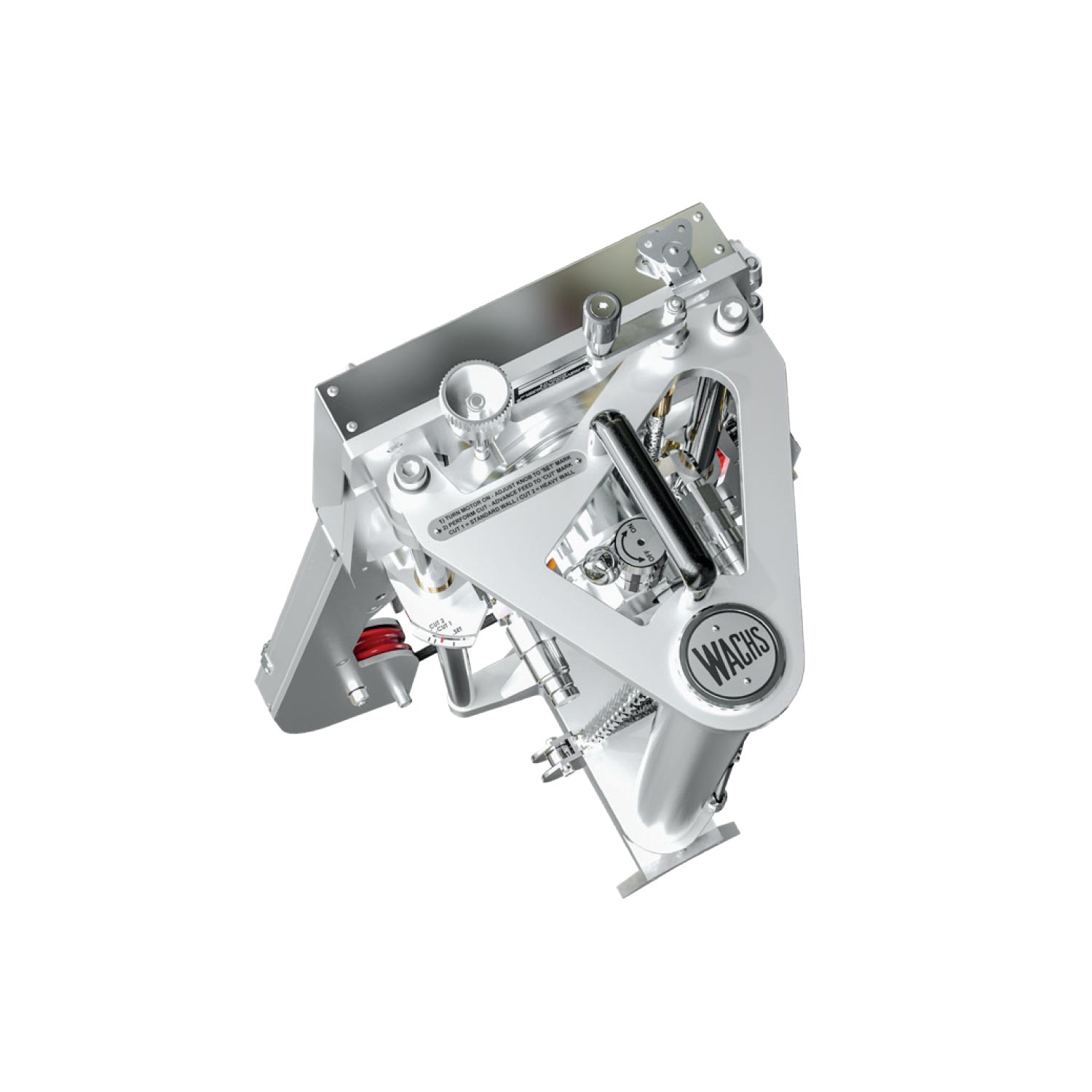

Arms collapse for compact storage and uses in restricted clearance areas
Storage carrier features casters for enhanced portability
Load-sensing feature increases wire life and cut speed
Narrow profile needs less excavation than traditional saws (virtually none required under pipe)
Fast (cuts 8in ductile pipe in under 3 mins)

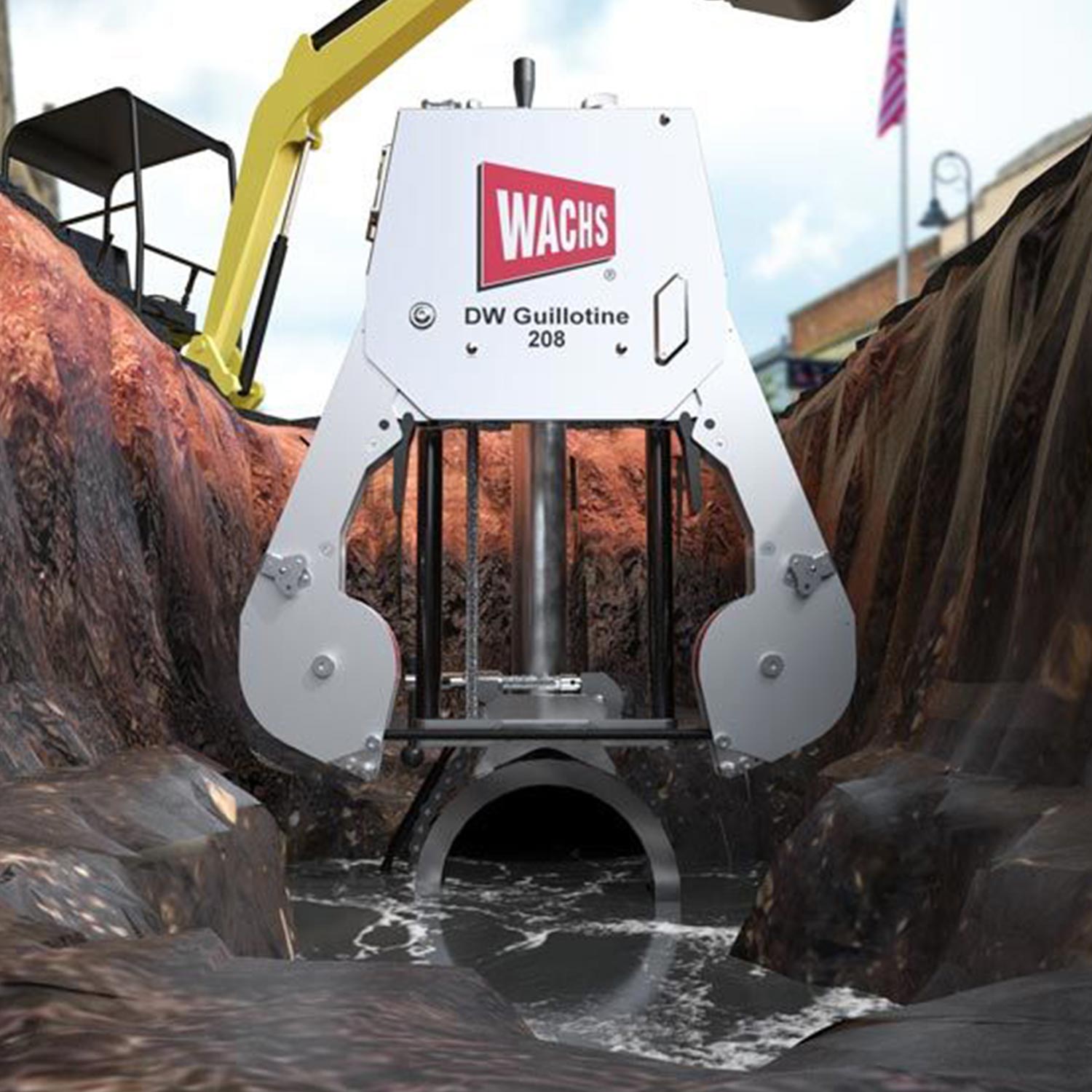

Cuts live mains and underwater (fully submerged)
2 settings for wall thickness
Mounts vertically or horizontally
Precision built with long lasting, corrosion resistant materials for years of trouble free operation
Designed for easy storage and portability

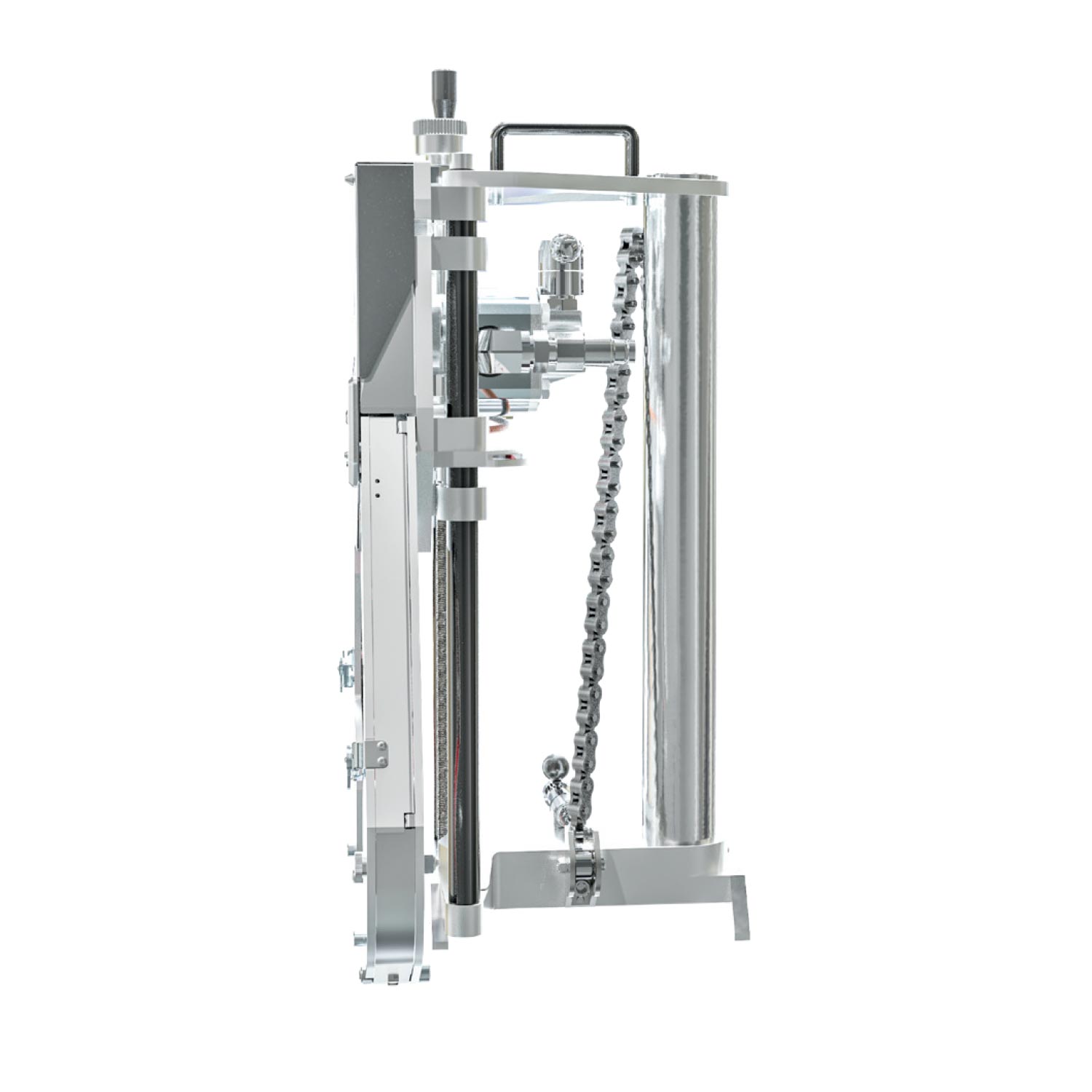

Mounting chain quickly secures the tool to the pipe preventing slippage and movement

SPECIFICATIONS

Cutting Wire: Quick change continuous loop diamond wire cutting element
Hydraulic drive: HTMA class II 8GPM @ 2000 psi (30LPM @ 137.9 bar)
Machine Capacity: Cold cuts all pipe material
Feed Rate: Variable based on workpiece size and density
Installation Method: Standard mounting chain
Controls: Single crank, manual feed with gauge; Motor on-off
Construction: Aluminium and Stainless Steel
Pipe Outside Diameter Range (OD): 1.969in-9.605in (50mm-244mm)
Power: Hydraulic
Application: Utility Pipe Cutting
Part Number: 29-000-08
RPM: Variable based on workpiece size and density
Operating Dimensions: 21.7in W x 13in D x 27.9in H (551mm x 330mm x 709mm)
Operating Weight: 51.6lb (23.4kg)
Warranty: 1 Year Limited Warranty

STANDARD EQUIPMENT

Hydraulic Powered Diamond Wire Guillotine
High density diamond wire loop assembly
Shipping and storage carrier
Operations manual
Spray coolant and washdown system
