Like all Wachs cutting solutions, the DW 416 is secured to the workpiece by a quick, secure chain mounting system, eliminating the danger of kickback accidents due to binding from workpiece shifts or compression cuts.

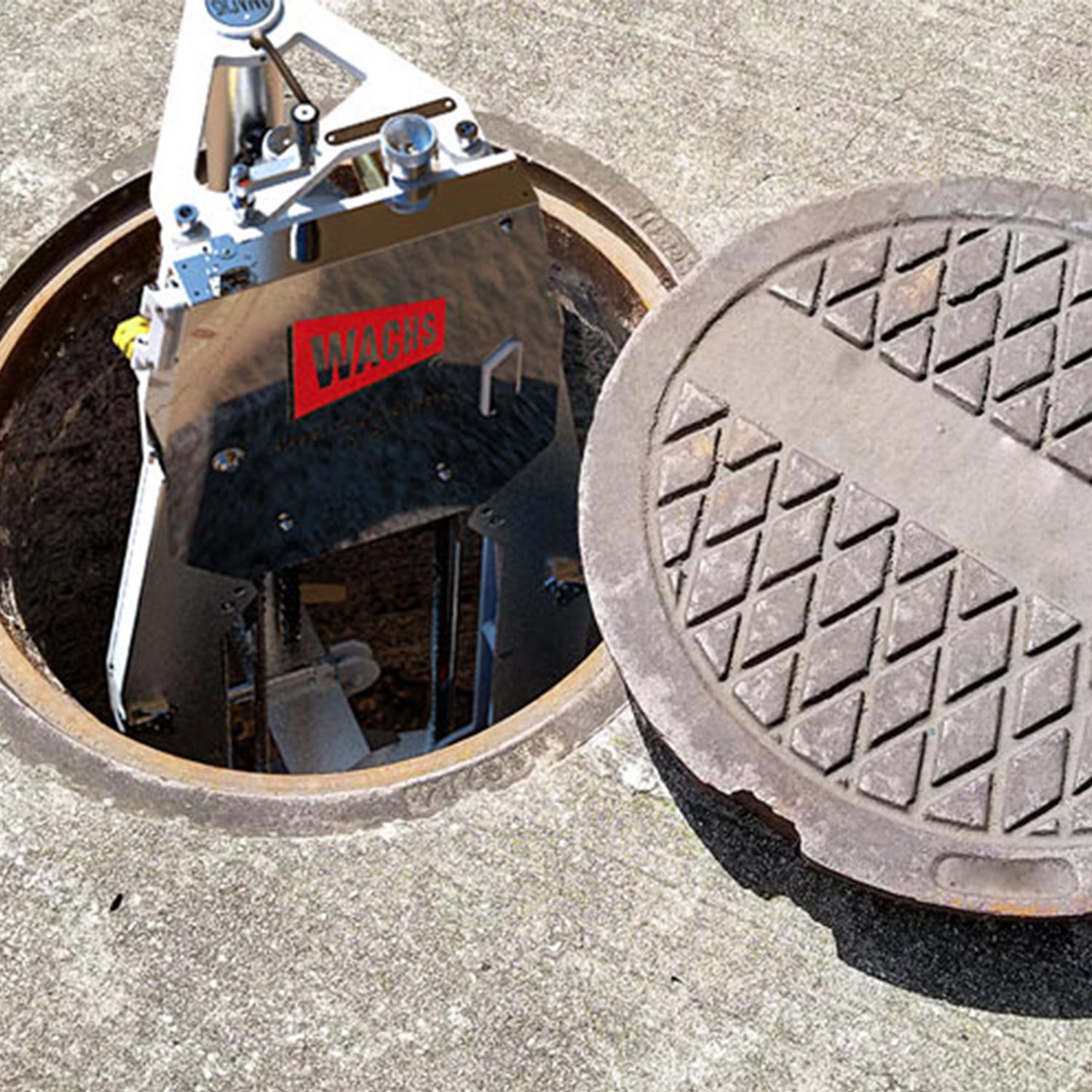

Hydraulically powered using a sealed loop, the DW 416 can operate under the most extreme conditions, including full water immersion, and is ideal for cutting in restrictive spaces.
The DW series diamond wire is long lasting, giving the DW 416 one of the lowest costs per cut in the industry. Like the smaller DW 208, it utilizes a fully enclosed, high speed diamond infused cutting wire that rotates radially while cutting, allowing all the diamond elements to come into contact with the workpiece.
Top mounted controls for wire speed and feed allow the operator to select the optimum settings for a quick, clean cut. Wachs DW 416 comes complete with a heavy duty carrier for ease of transport and to protect the saw in transit and storage.
DWG 416 FEATURES
- Easy operation and setup
- Guillotine saw with diamond cutting power
- Cuts wide range of materials
- Reduces operator fatigue
- Less excavation required than traditional saws
- Mounts directly to the pipe
- Clean, straight cuts
- Does not bind like traditional saws
- Cuts pipe 4in-16in (DN100-400)
- Cuts steel, ductile, PVC and cast iron
EASE OF OPERATION
- Load-sensing features increases wire life
- Feed pressure indicator shows stress on wire during operation
- Hand grips for two person mounting
- Single person operation
- Lightweight durable construction
- User replaceable clamp contact pads and wheel inserts
- Connects directly to Wachs TM-7 or standard HPU
- Mounts vertically or horizontally
STANDARD EQUIPMENT
- Hydraulic Diamond Wire Guillotine
- High density diamond wire loop assembly
- Shipping and storage crate
- Spray coolant and washdown system
SPECIFICATIONS
- Cutting Wire: Quick change continuous loop diamond wire cutting element
- Hydraulic Drive: HTMA class II 8 GPM @ 2000psi (30 LPM @ 137.9 bar)
- Machineable Materials: Cold cuts all pipe and bar material
- Machine Capacity: 16in (DN400) width and height
- Feed Rate: Variable based on workpiece material and density
- Installation Method: Standard mounting chain
- Controls: Single crank, manual feed; Motor on-off
- Construction: Aluminium and Stainless Steel
- Clamping Pads: User replaceable crush-resistant nylon clamping pads
- Included Accessories: Operating manual
- Finish: Natural Satin
- Pipe Outside Diameter Range (OD): 4in-16in (101.6mm-406.4mm)
- Application: Utility Pipe Cutting
- Part Number: 29-000-16
- Operating Weight: 75lb (34kg)
- Warranty: 1 Year Limited Warranty
