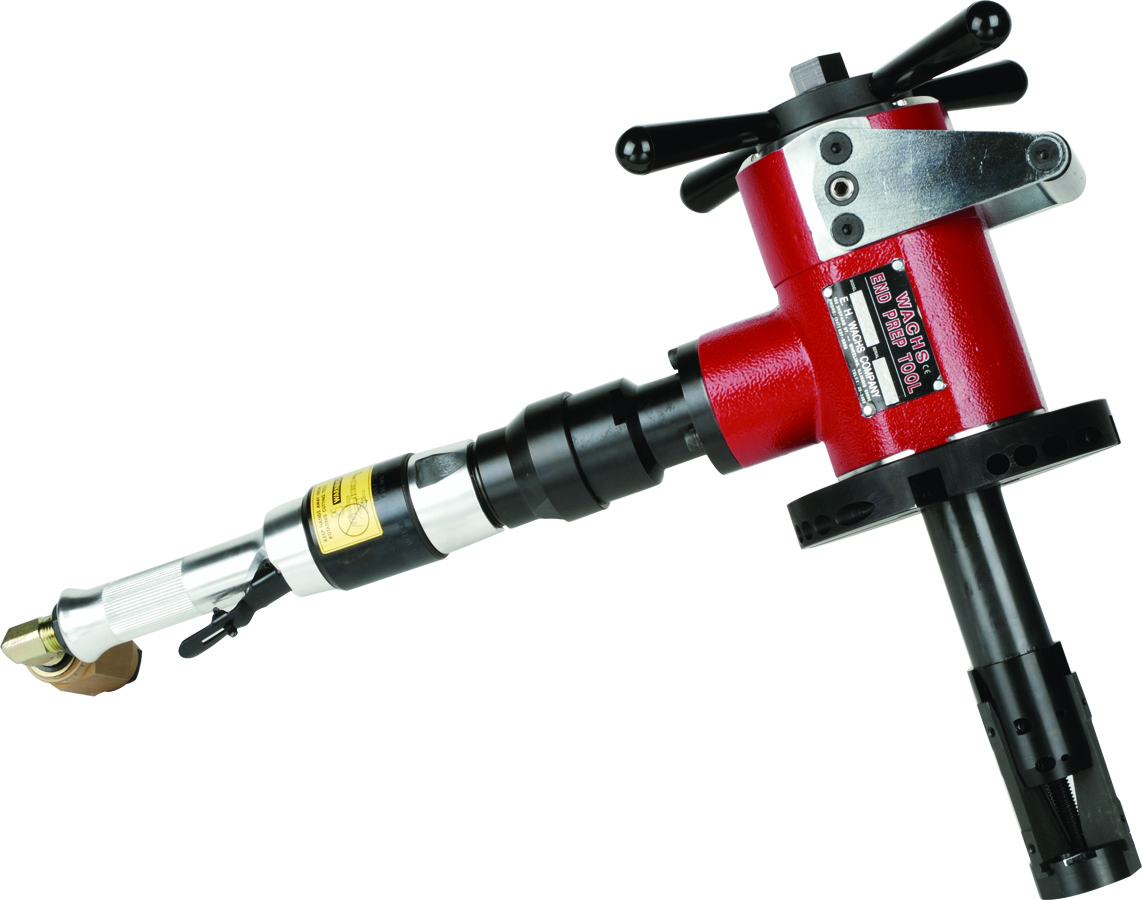

E.H. Wachs SDB206/2 is a strong and versatile handheld beveling and prepping machine that delivers maximum power and performance for fast and accurate end preps. The SDB 206 operates on pipe and tube from 2.27” through 6.77” ID, up to 0.75” wall (57mm through 172 mm ID, up to 19.05 mm wall). Machines OD up to 7” (177.8mm) with standard mandrel and up to 9.63” (244.6mm) with optional Large ID Accessory Kit.
The SDB 206/2 will face, bevel, deburr, compound bevel and counterbore simultaneously on carbon, stainless and high alloy steels and will also machine boiler tube, heavy wall pipe, and thin wall stainless tubing. The SDB offers versatility, durability, and a compact and lightweight design, and can be fitted to difficult to prep elbows with the optional 56-414-01 fitting mandrel.
Machine Design Capabilities And Durability
- Machines most materials including high alloy and stainless
- Face, bevel, deburr, compound bevel, J-prep and counter bore with the premium highspeed replaceable steel form tools, carbide and high-speed steel insert tooling
- Large bearing load diameter and tapered roller bearings support special heat treated ring and pinion gears for smooth operation and long life of the machine
- Tough, yet lightweight cast aluminum alloy housings for easy handling and performance
- Corrosion and wear resistant finish applied to external components for protection against the elements.
Features And Benefits
- Available with pneumatic, hydraulic, and electric drive options
- Maximized rigidity — large diameter mandrel shafts and wide surface chuck legs
- Large diameter mandrels and increased area load bearing surface areas create a rigid powerful tool to perform precision bevels on heavy wall pipe applications
- Easily operate handgrip speed control and precision feed hand wheel
- Will machine up to 9.63” (244.6mm) OD with optional Large ID Accessory Kit
- Minimal clearance required
- Convertible to FF series with optional Flange Facing Kit
- Machine raised groove or smooth 63 RMS finish on flanges with optional FF Kit
Fast And Easy Set-Up And Operation
- In less than 5 minutes with quick-change legs
- Automatically center with 3-leg chuck
- Install tool bits in seconds
- Safely operate with the “fail-safe” on-off motor valve
- Compact and lightweight design
Standard Equipment
- Rugged, job site friendly storage case
- Standard mandrel
- Complete extension leg set
- Operating tools
- Owners Manual
Optional Equipment
- Small mandrel for 1.91” ID through 2.46” ID (48.51mm ID through 62.48mm ID)
- Extended range kits for 6.71” ID through 9.04” ID (170.43mm – 229.66mm)
- Optional Flange Facing Kit
- Short perch independent fitting mandrel
- Electric drive motor
- Rotating tool holders expand low range and high range prepping capabilities
- Air filtration to eliminate water and airborne particles
- Available custom tooling
SDB 206 MANDREL UPGRADE KIT
Features And Benefits
- Hardened steel chuck body
- Enhanced chuck legs are more durable for superior operation
- New design clamping drawbar
- Thicker extension legs
- Captivated hardware
Services Available
- Re-sharpening service with 24-hour turn around
- Rental options for short-term needs
Part Numbers
- Pneumatic Powered 56-000-01
- Electric Powered 56-000-02
- Hydraulic Powered 56-000-03
- Mandrel Upgrade Kit 56-310-00
- Fitting Mandrel 56-414-01
- Flange Facing Kit 56-421-00
