Product Specifications

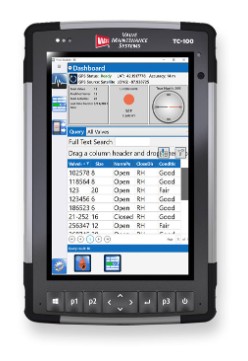

TC-100 WINDOWS 10
Microsoft Windows 10 Pro
Quad-core Intel Pentium N4200 processor
Intel HD Graphics
8 GB LPDDR4 Memory 128 GB Flash Storage
Micro SDXC card slot
WIRELESS CONNECTIVITY
Long-range Bluetooth Smart Ready wireless technology, v5.0 + EDR, Class 1.5, BLE support
Wi-Fi 802.11 a/b/g/n/ac, 2.4 GHz and 5 GHz
2×2 MIMO antenna
DISPLAY
Active viewing area: 7″ (178 mm)
Resolution: WXGA (1280 x 800)
High-visibility backlit LCD for best-in-class sunlight view-ability
Portrait or landscape orientation with automatic screen rotation
Ambient light sensor
TOUCHSCREEN
Capacitive multi-touch interface for use with gloves, small tip stylus, and in wet conditions
Optically bonded for increased visibility and strength
Chemically-strengthened Dragontrail™ High Ion-Exchange (HIE™) glass, impact and scratch resistant
Multi language support for English, French, Spanish, German, and Portuguese
KEYPAD
Adjustable LED backlit keys
Four-way directional navigation pad
Windows/home key
Power key, Enter key
Three user-programmable function keys
RUGGEDISED CONSTRUCTION
IP68 waterproof & dustproof – Water: 1.4 m (4′ 7″) for 2 hours
Operating temperature: -4 F to 122 F (-20 C to 50 C)
Storage temperature: -22 F to 158 F (-30 C to 70 C)
Shockproof: multiple drops from 4′ (1.2 –1.5 m) onto concrete
PORTS
12V DC power input jack
USB 3.0 x 1
3.5 mm audio jack output
Docking connector (Power, USB 2.0, HDMI, & Ethernet)
Loud output speaker for noisy environments
Dual digital microphone input
BATTERY
Removable Li-Ion battery, 43.2 Watt Hours
Operates up to 15 hours on a single charge
Removable battery, easily changeable in the field
Optimized for strong performance in cold temperatures
PHYSICAL
Size: 5.4in W x 8.48in L x 1.36in D (137 x 215 x 35 mm)
Weight: 1.7 lbs. (770 g)
Durable, chemical- and shock-resistant design
Easy-to-grip, impact-absorbing, overmolded bumpers
Lightweight and ergonomic design
STANDARD ACCESSORIES
Standard 43.2 Watt-hour removable battery
AC wall charger with international plug kit
12VDC vehicle charger
Valve exerciser control cable
Capacitive small-tip stylus w/tether
Connector port dust cover
Hand strap kit
Quick Start Guide
OPTIONAL ACCESSORIES
TC-100 Office Docking Station Ethernet/HDMI/USB
TC-100 Machine Mounted Cradle
Replacement Vehicle 12VDC Charger
Replacement / Spare Rechargeable Battery
Replacement Valve Exerciser Control Cable
Extended Warranty 3 Year Protection Plan
OPERATING DIMENSIONS
137mm wide
215mm long
34mm deep
OPERATING WEIGHT
770 grams
WARRANTY
1 Year Limited Warranty
